QB Times Issue #8

3. Which programming languages do you tend to learn in the future?
I guess I will get into C++, it shouldn't be difficult since I already know Java and C...
But I'm not sure I'll use it for fun programming... who knows...

4. How did you learn programming?
I learned Basic from a book, but mostly from the wonderfull help that comes with QB45;
You don't care about the rest... do you?

5. How long have you been programming on SuperStack?
It took me over three LONG weeks to complete the first SuperStack...
I did it from scratch, since I have reinstalled my computer, and all my previous QB programs have gone for good (DOH!)
After I saw that people liked that game, I decided to make another one, with all the things that bothered me and the other people removed, and several new cool things that I wanted to add... Took me two weeks to make those changes, most of the time was spent on photoshop, and finding wavs... But I hope you like the outcome!

6. Are you happy that you've finished SuperStack, or are you affraid to get bored now...?
You have no idea!
I couldn't sleep or eat without thinking what I will put in the game, what was left to be done... I even made a checklist (Ieeeeuu!!) to help me remember what is left to be done!
But after it was over, it was worth it! All the positive comments about it made it worthwhile...

Now I am resting... But things will come... Don't you worry about that...

7. What are your plans for new projects?
Lets see... umm... wait, wait, its coming... errr..... Nop. Can't see that far ahead; sorry...

8. What is the best site for getting programming info, in your opinion?
QB45.com ofcourse! :) Actually, I don't know... I don't scout the internet to get QB45 programming info... the inside help is just what I need!

9. Which projects are YOU looking forward to? Anything that really interests you?
Warcraft 3... Diablo 2... ... I know that someone will popup with an amazing QB game; remember that what makes a game great, is the idea; sure, graphics and sound counts, but if the gameplay sucks...

10. What is the best QB game you know?
Hey... You can't ask me that...!

11. What do you think about the future of Qbasic/QuickBasic???
I wish I knew... Now with Win2K taking over, DOS based applications are fading out - and I'm affraid that soon you will need a dos emulator to even try to run some of the things that are dos based... Microsoft has created this wonder, and slowly it is killing it...

Anyways, I think that Basic will remain THE programming language for people who want to create cool stuff - fast and easy.

12. Anything you would like to say to other programmers?
RUN!!! RUN AND DON'T LOOK BACK!!!

Program download of the month

Hidden Surface Removal for Three-Dimensional Drawing

Three-dimensional drawing can become very complex. Most three-dimensional models are created with a series of planes that represent the shell of the object. If the planes are filled, then the plane is considered to be nontransparent. Similarly, if the plane is not filled, the plane is considered to be transparent.

When rotating or moving three-dimensional objects, it is often necessary to remove parts of objects, or even entire objects, in order to provide realistic representations of the environment. The method by which these objects are altered is called hidden surface removal. The most common types of hidden surface removal are discussed in this tutorial.

There are two basic types of hidden surface removal. These are object-space methods and image-space methods. Three-dimensional information is used with object-space methods to decide which surfaces should be hidden and which surfaces should overlay others. Image-space methods use two-dimensional information to determine the hidden surfaces.

The most common method of hidden surface removal for personal computers is probably the plane equation method, which is an object-space method. In general terms, the plane equation method determines if a point is in front of, on, or behind a specified plane. By testing each point against the viewing position, always (0,0,0), the visible and hidden planes are determined.

The equation of a plane is:

Ax + By + Cz + D

A = y1(z2-z3) + y2(z3-z1) + y3(z1-z2)
B = z1(x2-x3) + z2(x3-x1) + z3(x1-x2)
C = x1(y2-y3) + x2(y3-y1) + x3(y1-y2)
D = -x1(y2z3-y3z2) - x2(y3z1-y1z3) - x3(y1z2-y2z1)

When using this method it is important that the points used to derive the equations are plotted in a counterclockwise direction and can be viewed as part of a convex polyhedron. A convex polyhedron is a figure that has many faces and is curved outward, such as a cube.

3D Graphics

Welcome to part two of the 3D tutorial. As promised, here you'll actually begin creating something! For this tutorial, I'm using Extreme 3D because it is fairly easy to use. You can, however, use any other 3D program (except for Bryce which works differently), since they all use exactly the same method. Some of the tools may be different, or may have different names, in other programs, but things should be the same.

Well, to it then! The first thing to know is that all 3D objects are created out of 2D objects. Just to go off to the side a bit, I'm sure you've all heard of 3D objects having a certain number of "polygons". Those polygons are triangles, and they make up everything. If you make a square box, each side will be made up of 2 triangles, put together so that they form a square. With triangles you can form any sort of object. However, 3D programs know that it would be incredibly difficult to go about making an entire object just out of triangles! So they have various other tools that let you make 2D objects into 3D ones. Lets take a look at them.

Seems like a lot of tools. But we'll only be concerned with the second set for now - the 2D primitives. First of all, lets have a look at these. From the pictures it is in fact pretty obvious what they are. Their names are the Text tool, polyline tool, line tool, spline tool, arc tool, regular polygon tool, rectangle, and circle tools. Clicking and holding down on a tool (this is for extreme 3D only of course) will often expand and give you more tools. For example clicking on the rectangle tool will show a tool that draws squares.

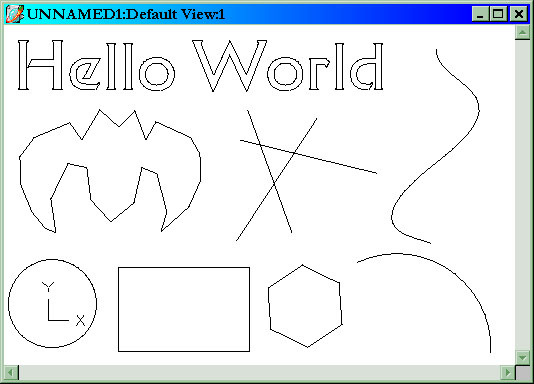

Here is an example using all of these tools. First we can see the text tool. This is fairly straightforward. You double click on the icon to select the font and size, click on the screen, type what you want, then press enter. You get from this some 2D text. Below that we see a polyline tool. As you can see this is basically straight lines drawn all at once to form a single object. To use this tool, you click on it, then click on the screen to draw points. The first point will be joined to the second with a line, the second to the third, and so on to form a shape. This tool is very useful. Next are some lines. To use these, click, drag to the endpoint, then let go - simple. On the right we see a spline. Splines are a bit more difficult to work with - later on I'll show you a little screenshot of what they look like. But for now, you can see that they are what would give an objects a curved surface. On the lower left, we see a circle, and then a rectangle. For these, you click on the center point, then drag out to the dimensions you want, then let go. The regular polygon tool is not seen so often in other 3D programs. In E3D, you click on the tool, select how many sides, then click on the screen and drag to determine how big it should be. Lastly is the arc tool. For this one, you click on the center, click on a point outside to determine the radius, then drag for how long the arc should be.

Phew! A lot of tools. That was a very quick and basic view of what each tool is that what it does. Time to get to some examples! Following are screenshots of how to use some of the tools.

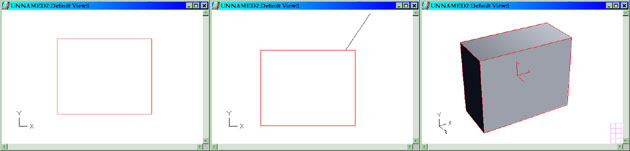

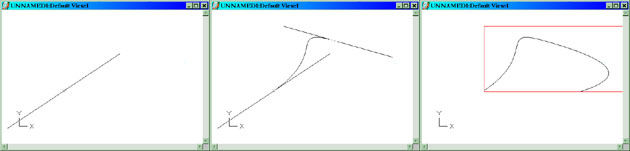

Other than this, the tools are fairly straightforward. Now, these are just 2D images. They are flat. We want to make them into 3D images. To do this, we make use of the bottom set of tools. Of these, 3 are important. In the upper left is the extrude tool. This lets you take a 2D image (or "profile") and stretch it out into a 3D image. If you take a square, it will become a rectangle or cube. If you take a circle, it will become a cylinder. In the middle right is the Lathe tool. This rotates a profile around an axis. This also forms a 3D objects. For example, rotating a rectangle around one of its sides will give a cylinder. Rotating it around a point a little away from the side will get a cylinder with a hole in it. More examples of this will follow. Lastly, in the bottom right, is the skin tool. I won't be going into this at the moment, but it is perhaps the most important of these tools.

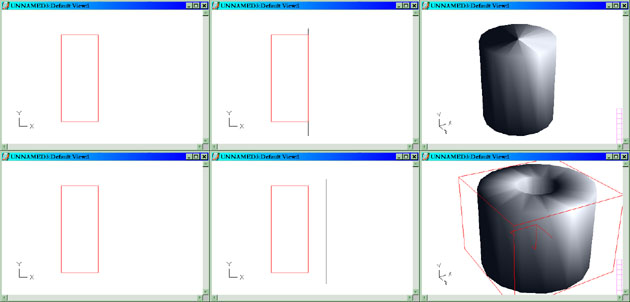

These tools, combined with these objects, should be able to give you pretty much any shape and form you want. The last thing I'll cover is the skin tool. This one is the hardest to use, and its results are a bit unpredictable. The skin tool in other programs such as 3D Studio is also somewhat better than the one in Extreme 3D. 3DS even has a plugin especially designed for smoothing out such skins. But this example should give you the basic idea. For this example, we'll need to switch views a bit and learn about transformations. Switching views is simple. You click on the view menu, and choose a view! Right now, we've been working in front view. For the above example of lathing, the last frame was in "Three Quarters" view, to show the perspective.

Now, a skin is...a skin. It is a flat surface stretched around several 2D objects. If you take a skin of two squares, with one above the other, it will return a cube. Two circles with one above the other will return a cylinder. Here is an example, with explanation.

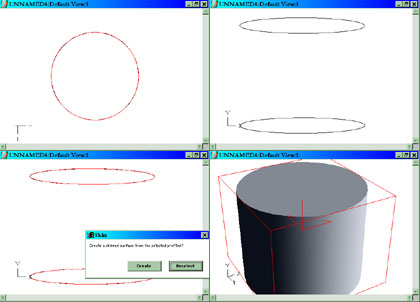

First I started off in TOP view and created a circle. I used top view because it makes sense - if we're making a cylinder, the top will be a circle. In the next frame, I switched to front view. I copied and pasted the circle and then moved the two circles apart. Next, with the two circles selected, I clicked on the Skin tool. A little dialog comes up asking us if we want to "Create" or "Deselect". Create lets the program decide in what order to skin the profiles. If we chose deselect, we could choose the order, if we wanted to create an object with a certain skinning order. Most of the time the program does it right. And there we go - a skin stretched around two circles gives you a cylinder.

Well, these are all the 2D and 3D tools necessary! It may not seem like it, but now you're ready to create almost anything. Before I go on to the final example though, I'll show you hwo to resize, rotate, and mirror objects. To mirror an object, 2D or 3D, you select the object, then click on the mirror tool. This is in the third set of tools on your toolbar - right underneath the paint bucket. You then draw a line around which you want the object to be mirrored (sort of like drawing a line for a lathe), and a copy of the object will appear flipped accross this line. Rotating and resizing involve the function keys. That is, F2,F3, and F4>. To resize an object, select the object, then hold down F2. Drag around the screen, and the object will be resized. Clicking and holding down on F3 and F4 will rotate the object around various axes.

On to the final tutorial. I'm going to take all of what you've learned and show you how you can use it to create a REAL shape (not these cylinders and cubes).

That's it for this chapter of the tutorial! In the next chapter, I'll cover a bit more 2D stuff, then go into materials, textures, and rendering your objects into final images.

Note:If you are actually trying this out on Extreme 3D, there is a little bug of sorts. When you make an object in a certain view, then switch to another view, you may not be able to see the object at all - it is far off the screen. You need to use the arrow keys to move it into your viewing area. This happens usually when making objects in top view and then switching to front view - the object is usually below the screen, and you must move it up.

Shining Force like battle engines

Now the second part of my tutorial, a short one :
How to move the members of your team and how to limit them. You know that each member has a limit of displacement; for example this one (the 'X') has a limit of three :

         3
       3 2 3
     3 2 1 2 3
   3 2 1 X 1 2 3
     3 2 1 2 3
       3 2 3
         3

     FOR i = -limit TO limit
                nbcase = ABS(limit - ABS(i)) * 2 + 1    'this gives us the number of reachable places per row
                FOR j = 1 TO nbcase
                        LOCATE (1 - nbcase) / 2 + j - 1 + xposition, i + yposition: COLOR 18: PRINT CHR$(219)
        NEXT j, i
COLOR 7
LOCATE xposition, yposition : PRINT "X"

But that's not all : we must include a moving and limited character. There are two ways of doing it :
1. The 'classic' method (in Shining Force) : you can move the character only on the blinking piece of ground.
2. The 'modern' method (in Vandal Heart) : you move a cursor all over the map, seeing the properties then you choose (on the blinking area) the place where you want your character to go.

There are pros and cons in the programming of the two ways : 1.First method :

PROS	You move the character, there's no use of programming an A.I
CONS	You have to program a limit of movement You can't see ennemy's tile status directly

2.Second method :

PROS	You don't have to set a limit of movement You can view ALL tiles status and all the ground
CONS	Must program a (little) A.I to move the character where you want to You can't undo a movement

Now choose the method you want to use: there are tips below to program the two methods and when I will come back from my holidays I will release a demo of the two methods.

Tips for the first method : Create a clone array of the ground then add 1000 on all the tiles reachables by the character then just make a test /*/IF tilevalue>1000 THEN move ELSE stop moving.\*\ To draw the tiles with a value increased by 1000 make this test : /*/IF tilevalue>1000 then draw tile for value tilevalue-1000 \*\(if you have more than 1000 tiles drawed for your game, increase the value by 10000 or higher).

Tips for the second method : Let a free moving cursor then make a test /*/IF cursor is on a blinking tile AND enter key is pressed THEN move the character ELSE beep or PRINT "Unreachable".\*\ A.I to move the character :

(verticalposition of the cursor - verticalposition of the character) = vertical moving
(horizontalposition of the cursor - horizontalposition of the character) = horizontal moving

FPS (FRAMES PER SECOND)

Hello! This article is written esspecially for people wanting to see how fast the engine of their new program is but have no idea how to do it. I'll first explain what FPS is then I'll discuss what a good FPS rate is for your program and then I'll give an example program which measures FPS.

What is FPS?

FPS stands for Frames Per Second, this means how many times the program refreshes the image on the monitor. A more efficiently written program has a higher FPS rate than a sloppy program. The higher the FPS rate the smoother the program runs.

What is a good FPS rate for my program?

The human can see about 23 FPS so for a smooth looking animation you need to have a FPS greater than this. A FPS about 25 is the bare minimum for smooth animations. A FPS of about 40 or 50 should be fine for most programs. The highest useable FPS you can get is around 70, while you CAN get higher FPS it won't help to smoothen the animation because the monitor refreshes only 70 times a second.

OK, now how do I implent this into my program?

Ahh! Now the nice part comes :) I'll have source code in a minute but first I need to explain something about the implentation of FPS in a program. In order to measure FPS your program needs to refresh continuasly. This means that the program has, for instance, a DO...LOOP in which all the actions are called (check for user input, move the player, redraw the screen). If your program is a like this you can add a FPS counter if your program only redraws the screen when, for instance, the player moves the FPS counter is fairly useless.

OK, onto the source code! So you have this DO...LOOP in your program. Add this somewhere in the LOOP.

        FPS% = FPS% + 1
        IF starttime# + 1 < TIMER THEN
         FPS2% = FPS%
         FPS% = 0
         starttime# = TIMER
        END IF

        LOCATE 1,1
        PRINT FPS2%

        FPS% = FPS% + 1

        IF starttime# + 1 < TIMER THEN

         FPS2% = FPS%

         FPS% = 0

         starttime# = TIMER

        END IF

Well... I hope you understand FPS now. If anything's not clear. Mail me!

Interview with the authors of FoX

1. How long have you been programming in QB?

WS: About 3 1/2 years now.

TZ: Around 8 years on and off.

2. Which other programming languages, besides QB, do you know?

WS: C++ and Java, though at the moment I'm better in QB. I can also do a tiny bit in Assembler and Perl.

TZ: I'm good with Assembly, C++ and Pascal

3. Which programming languages do you tend to learn in the future?

WS: For me, I just want to improve on everything I mentioned above, and make myself as good as making games in C++ with DirectX as in QB!

TZ: I need to learn some of the visual languages so that I can create Windows applications, etc. I am also interested in a powerfull new hand held games console which will be coming out in the near future.

4. Now about FoX: How should people look at the game?

TZ: I don't want people to see the game as a QB program. I hope that people won't look at the game for the quality of its code but rather that they just actually play the game and hopefully enjoy it.

WS: As for the QB world, I think it should break a lot of ground. The engine we've got is superb, and I don't think anyone has seen a complete game with all the features FoX has yet. We see a lot of demos of projects that look promising, but hopefully FoX will take all those hopes of great graphics and huge gameplay, and turn them into a QB reality.

5. How long have you been programming on FoX?

WS: Bad question. :) We started in March 1998, but in that period of time we've revised the game design numerous times, and gone months without doing anything. However, I think that's given the game an advantage as we've consistently improved the game and hopefully eradicated any original bad ideas.

TZ: What he doesn't know is I first came up with the consept whilst playing the first ever Sonic on the Game Gear around 7 years ago =)

6. When should we expect a final release of FoX? When will it be finished?

WS: The programming virtually is all finished, what's left is very minor, and of course the issue of putting together our code into the full game! Now, we're really left with gathering graphics and level design (for 40 levels), which might take a while. We've also got major exams at school over the next month, so really we can't state a date. As soon as possible is what I'm saying.

TZ: Hopefully very soon. The next month or so we won't be able to do too much work but after then we have far too much time on our hands =) We are just in need of graphics. If anyone out there can produce the sort of quality graphics that you see in the current game, please mail me! We just need graphics for a city world and a factory world.

7. Do you have any plans yet for new projects?

WS: Hmm...nothing we've really discussed. We've got ideas which we've mentioned to each other, but no definite plans.

TZ: I have left the QB scene so I doubt you will hear much more of me. I do however have plans for a game in Pascal.

8. What is the best site for getting programming info, in your opinion?

WS: I like GameDev.net. This is mainly for programmers in industry, using C++ and DirectX, but it has some brilliant articles if you can use DirectX. It's worth a look at anyway, as it contains links to many other game programming sites.

TZ: GameDev.net is good for industry standard programming but as far as QB goes, http://neozones.com is good as its got a real time submission system and a good community of people who go there. For QB files, I always choose http://qb45.com as its always got files both new and old.

9. Which projects are YOU looking forward to? Anything that really interests you?

WS: I have to admit, I haven't been looking around on the QB scene for a while. I'm an RPG fan myself, and have been waiting patiently for many eons for games like DA2, Vampira and Eternal Frost.

TZ: I havn't seen or heard of any projects that interest me for a while. I was very impressed with Pasco's France '98, especially considering it was pure QB but I think he bailed out of that. His latest project is a bit of a let down however. I am looking forward to seeing Liquedex produce something as he is always bitching at me so be warned, Liquedex, one little inperfection and you're done for! =)

10. Anything you would like to say to people who have played your game and want to make a game that is as good as FoX?

WS: You've got to have motivation. Our advantage is that we're friends in real life, and if one of us doesn't do any work, we can bug the other one constantly to do stuff! I know I've personally been motivated to work on the project after seeing a new demo of the main engine from TZ. Also, I think you have to be prepared to revise the game a lot. If you can't do a certain feature, then leave it out, and don't be afraid to recode things! I've recoded my whole world map engine many times! Lastly, you have to have some programming talent, otherwise you're finished with!

TZ: The above is all bullshit. Take it from me, the only way to success in games programming is hours and hours of slaving over a 12 pack of Fosters, a pack of fags, a powerfull caffine source and very high volume punk rock.
