I'm baaaack! It's due time for another BASIC Gaming issue, my friends.
Sorry for the delay. I took sort of a month off from the community work, so getting back in the saddle and compiling our bi-monthly activity took more time than usual.
But I have returned invigorated and ready to contribute more and better. Will try to do more for the next issue as besides taking a break, updating FBGD and starting another FreeBASIC game dev competition took some of my free time too.
It's all community work and I love doing it. Still, hope to find inspiration and time for some of my own game projects soon as well. It's been too long.
What this issue of BASIC Gaming brings to you? High quality maintained! Awesome news briefs, great project in the gallery section, one review, one brilliant tutorial and one article. All in all, a mouthful. Hrm...I think I already used that word in one of the previous intros. Bah, too lazy to check.
Before leaving you to enjoy this issue, let this music play in the background. Feels appropriate. Rock on!
~ Lachie Dazdarian (lachie13@yahoo.com)
News about the latest FB/QB64/QB games, game engines, game-dev libraries and site updates.

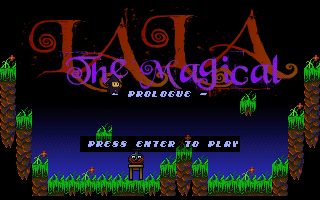

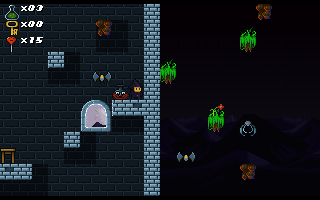

Community veteran na_th_an surprised us all with his reboot of original Lala Prologue. It is a completely new game this time, an old-school platformer about a witch apprentice who needs to gather all the potions scattered around the academy, which flew out of her mentor's room.
With its superb engine, nice music and cool retro graphics I can warmly recommend this, albeit smaller, platformer to everyone. QB is not dead! DOSBox included in the download.
Official website: http://www.mojontwins.com/juegos_mojonos/lala-prologue-ms-dos/
Local download: lala--RC1.rar (1618 KB)

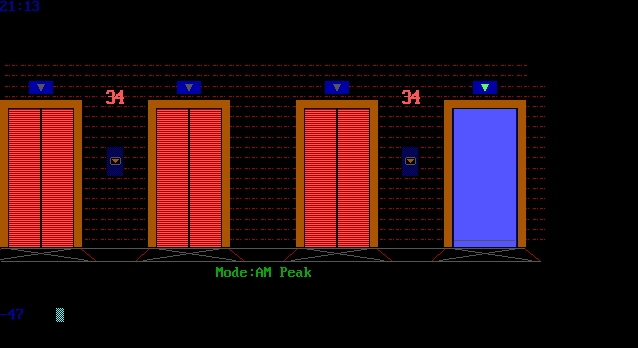

Emery released a really neat and insanely detailed elevator simulator he's been developing for years. A wonderful toy for all simulations fans out there. Give it a peek. Comes with a manual, and on the top of that the developer provided 4 tutorial videos.
Official forum thread: http://www.qb64.net/forum/index.php?topic=7223.0
Local download (ver.0.63): LiftSimv63f2_PeopleEditor11_WAVtester_HandyGuidePDF.zip (5570 KB)

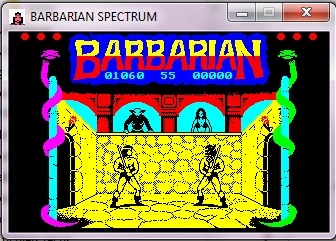

barbarian.1987 releases yet another version of Barbarian remade for QB64, ZX Spectrum version, according to developer the last one. For the fans of ZX Spectrum graphics aesthetics, yours truly included, a must have!
Official website: http://barbarian.1987.free.fr/download/download.htm
Download the game locally here (4222 KB).
barbarian.1987 updates his Crazy Cars remake with a highscore feature.
Download the new version on the official website.

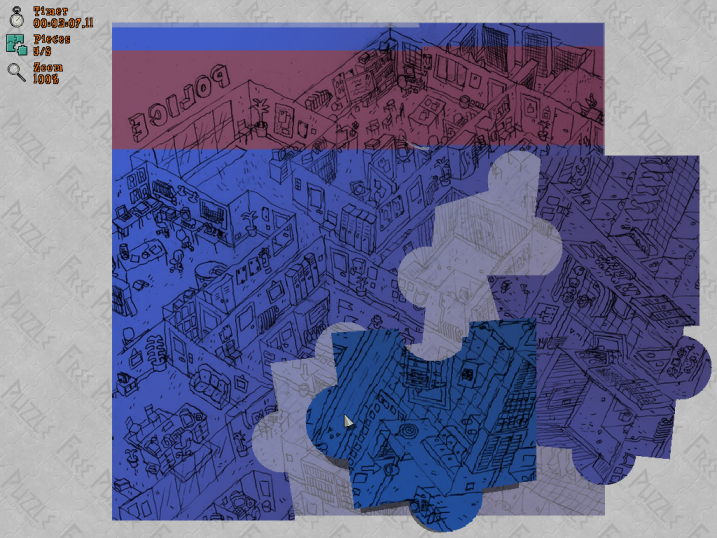

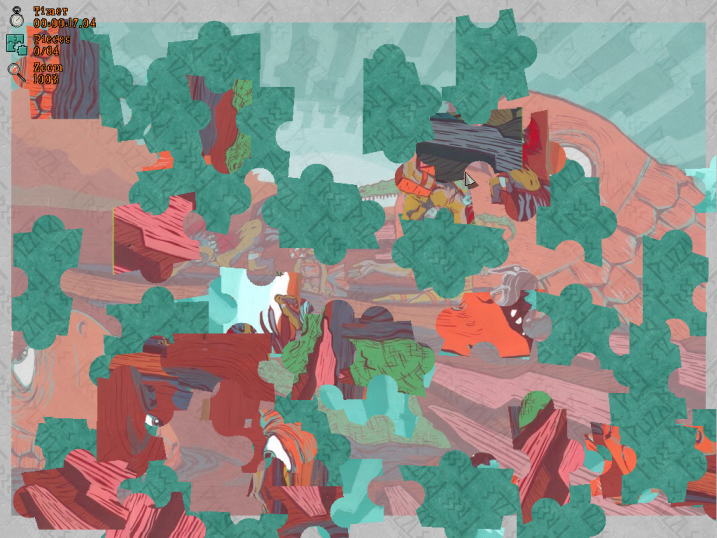

Free Puzzle is an awesome Jigsaw game by Alias Conrad Coldwood, wonderfully presented and designed, with many options allowing you to create puzzles of various sizes and difficulties (double-sided or not!), from preset or your own images. The best FB game of this kind (jigsaw/picture assembly) so far. Highly recommended!
Download the game here (4244 KB).

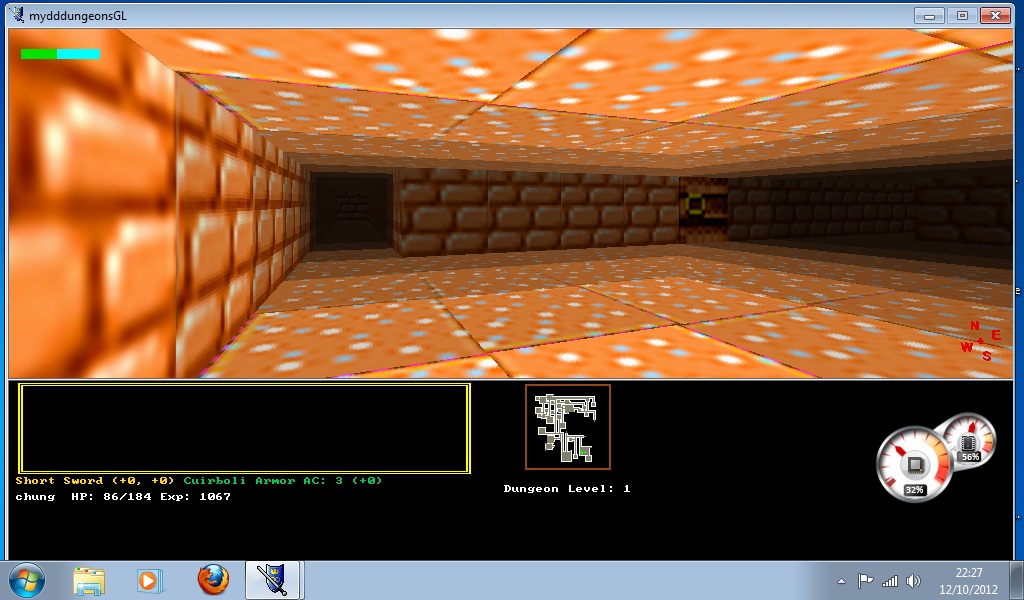

Chung released an interesting 3D mod of rdc's Deep Deadly Dungeons. Check it out!
Download the mod on the official website.

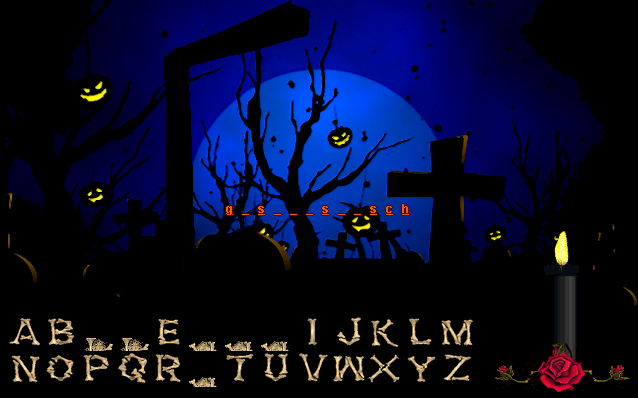

Hangman Halloween is a small hangman game with a German dictionary, but you can create your own. Solid graphical design. Features ambient background sound track.
Download the game here (5387 KB) or go to this webpage: http://www.freebasic-portal.de/downloads/spiele/hangman-246.html
Convex Wars FB is an wonderful new, Asteroids-style, space shooter, featuring superb glow-line graphics and excellent sound/music support. Easy GL2D powered! Download the game here (956 KB) or read my review on it.
PrimZero updated his bitrunner game by adding 3 game modes and some polish. Nevertheless, it still feels a bit clunky and confusing. Maybe it could use a manual of some sort. Still, interesting.
Download the game here (87 KB).
xbgtc (aka Falken) remade/ported an old Slickrock Software strip poker game, featuring full motion video and speech. Quite cool stuff.
Screenshot (adult warning, provocative bikini image): click
Download: http://www.gameupdates.org/details.php?id=5219 (180 MB, torrent dl, ADULT WARNING!)

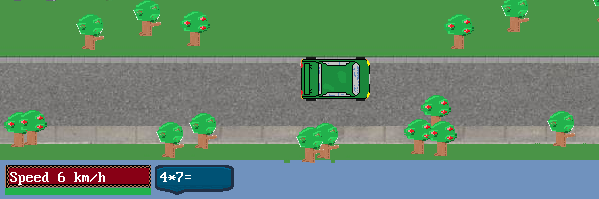

NumRacer is a nifty little arithmetics practicing game where you need to keep solving various math equations fast enough to keep a car running. There is a highscore to beat, but features a rather limited selection of math equations (which you can, however, expand). Could use a little bit of more polish, but even in this form a very original and fun game to try out at least once. Perfect for a remake!
Download the game here (79 KB).
Forum thread: http://www.freebasic.net/forum/viewtopic.php?f=8&t=20491

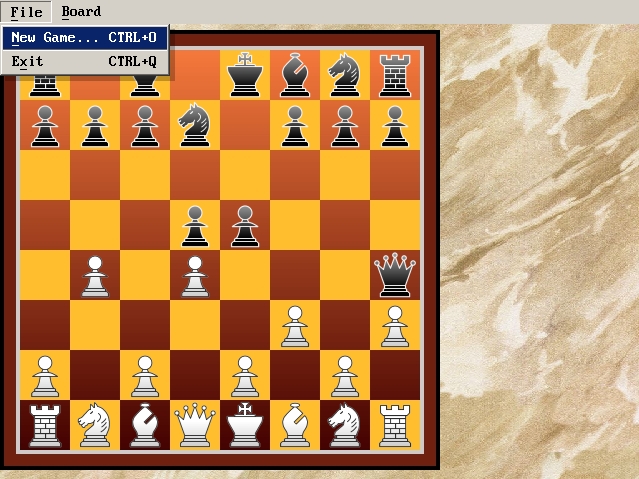

Kopecjay released a nice chess game in QB64 featuring a Minimax engine written for qb4.5 by Dieter Steinwender and Chrilly Donninger, nice GUI (Menu library by TerryRichie) and chess pieces graphics by Peter Wong.
Download the game here (3159 KB).
Forum thread: http://www.qb64.net/forum/index.php?topic=7024.0

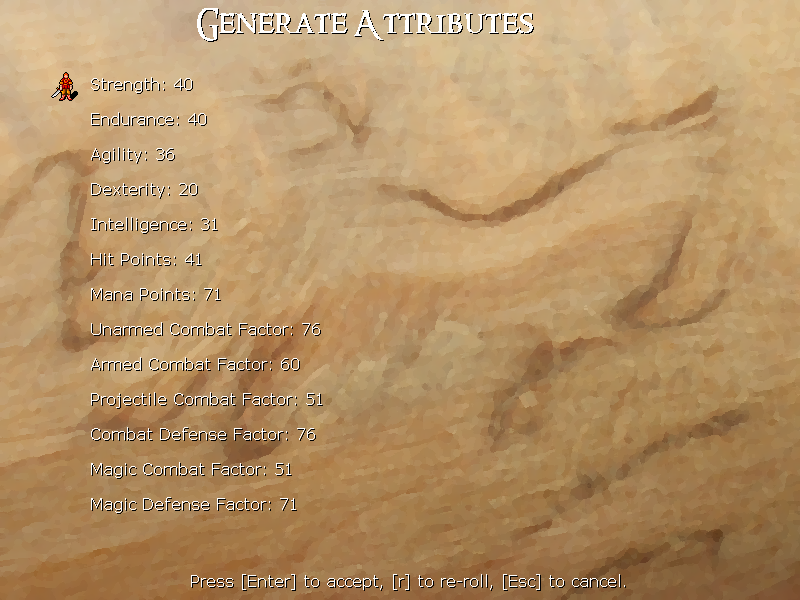

rdc continues working on his sequel to Deep Deadly Dungeons - The Crown of Alegare.
Development forum thread: http://www.freebasic.net/forum/viewtopic.php?f=8&t=20344&start=60

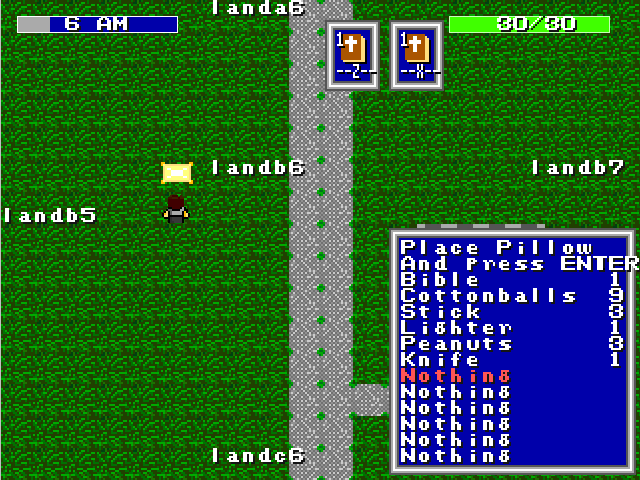

Douglas Crawshaw Jr reboots his economy-based RPG and renames it to Bug-Out, shifting the focus this time onto survival after a catastrophe. Check out WIP here (422 KB), featuring a small quest.
Developer's blog entry on this reboot: http://dcjrprogramming.blogspot.com/2012/11/economy-wip-part-2-bug-out.html
Pitto showcases an exciting FB project in development - a cool looking Sensible Soccer clone entitled JASC (Just Another Sensi Clone).
Download WIP here (25 KB, ver.0.16).
Forum thread: http://www.freebasic.net/forum/viewtopic.php?f=15&t=20637

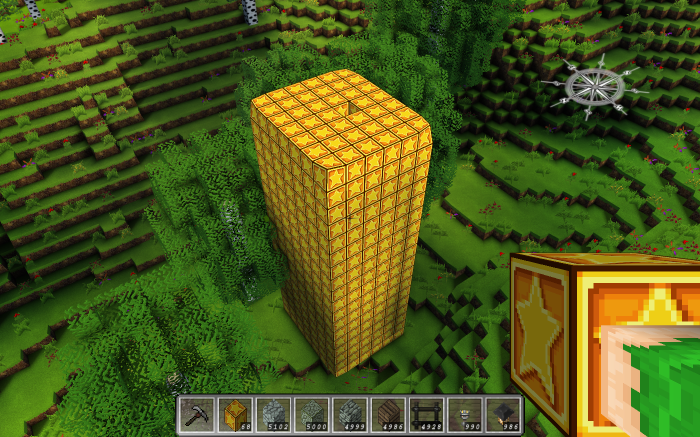

Gonzo continues posting screenshots and dev information on his fbcraft project, an awesome block-world style 3D game/simulator.
Official development thread/diary: http://www.freebasic.net/forum/viewtopic.php?f=8&t=17129&start=285

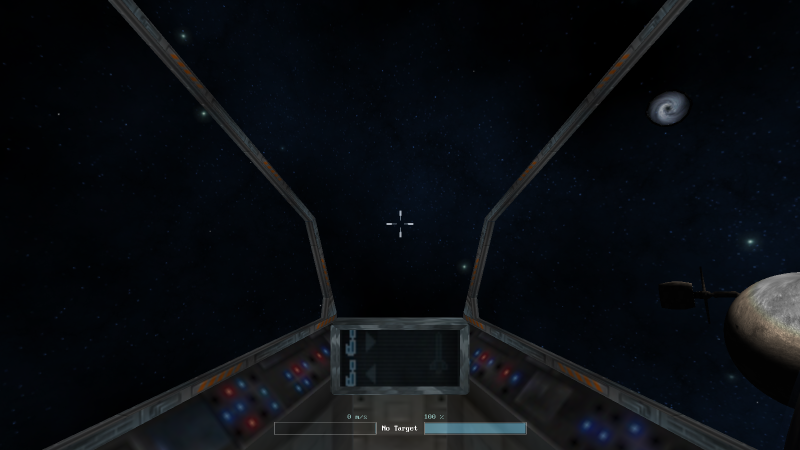

Westbeam releases a pre-alpha demo of his great looking 3D-Space RPG which takes place in the X-Universe of Egosoft. Explore a huge galaxy, encounter different alien races, buy many different ships, build your own space stations. Sadly, only a Linux version is available at the moment which I can't test. Windows version is in the process of being patched. Let me know how cool this is. Dying to try it out!
Forum thread with more screenshots and a download link: http://www.freebasic.net/forum/viewtopic.php?f=8&t=20384&start=15

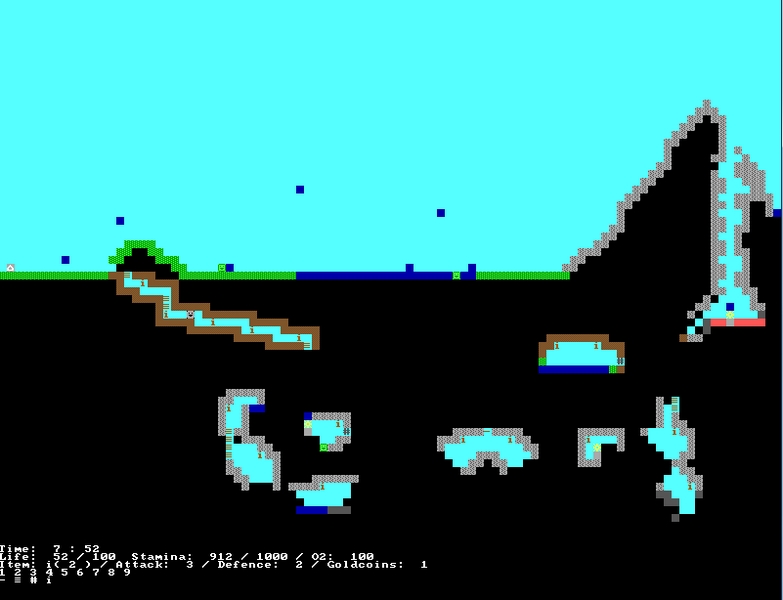

MrFreyer releases a new version of ASCII Treasure, an ASCII-graphics RPG in development.
Download version 0.0.4 here (6522 KB).
Official website: http://asciitreasure.de.to/

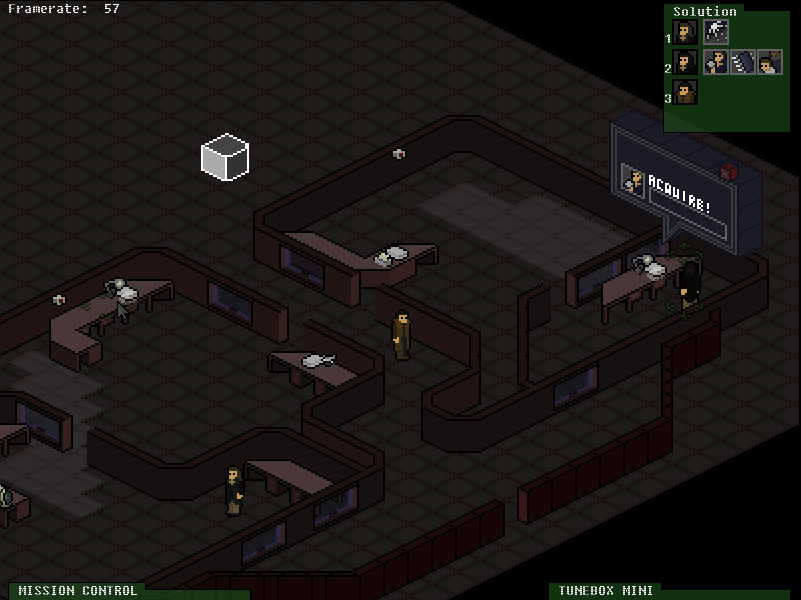

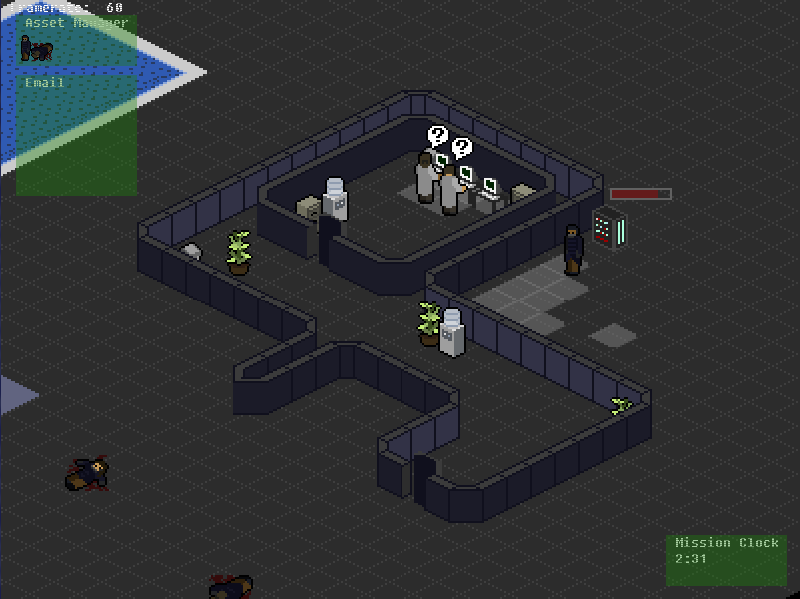

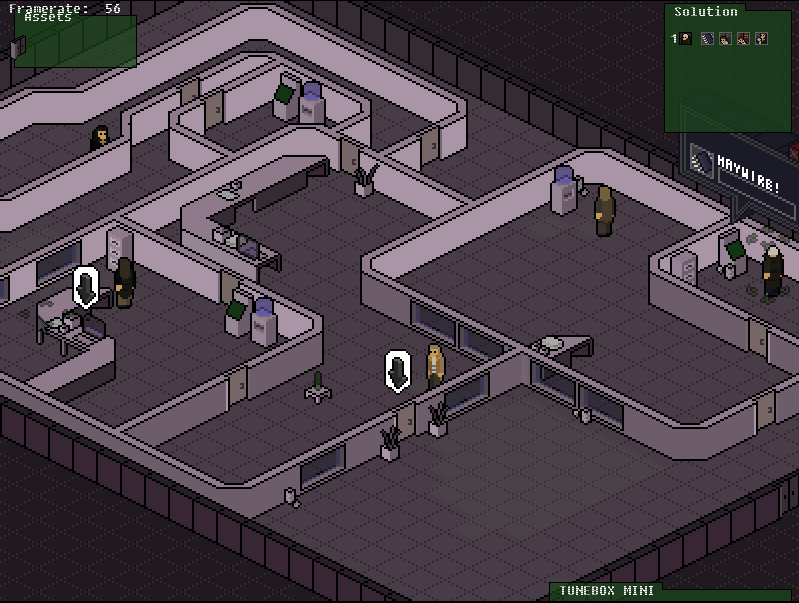

Klangaroo is working on an exciting new game in QB64, an isometric D-Generation-style game. More info in the gallery section.

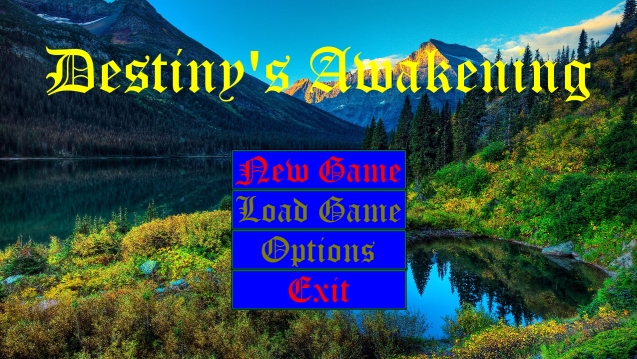

SMcNeill announces the production of a 2D SNES Dragon Warrior style RPG. The code appears to be still in prototyping stage, but SMcNeill released a small teaser. Get it here.
Another interesting QB64 game project in development. Appears to be a first-person 3D open space shooter.
Development forum thread: http://www.qb64.net/forum/index.php?topic=7359.0

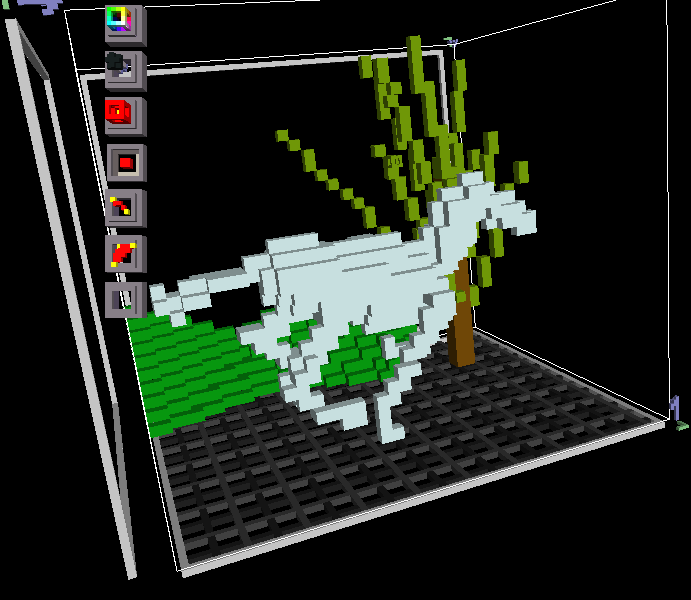

Gothon continues to update his Voxel Graphics Library, with the latest update featuring a drawing program for the library. Check it out!
Download WIP here (262 KB).
Forum thread: http://www.freebasic.net/forum/viewtopic.php?f=8&t=20065
Gothon was awesome enough to port his Voxel library to QB64. Yay!
Forum thread: http://www.qb64.net/forum/index.php?topic=7154.0

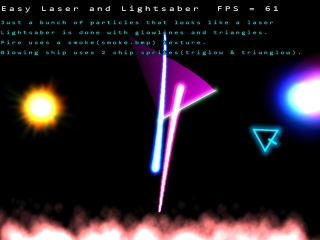

Relminator updates Easy GL2D, an OpenGL 2D rendering engine, to version 0.7. It is a major update including: changed calling convention so that the C++, DS and FB versions share the the same calls and convention, cleaner and better stream-lined API, fonts, better docs, and more.
Download ver.0.7 here (1072 KB).
Lib webpage: http://rel.phatcode.net/junk.php?id=115
More info and screenshots in the awards section.

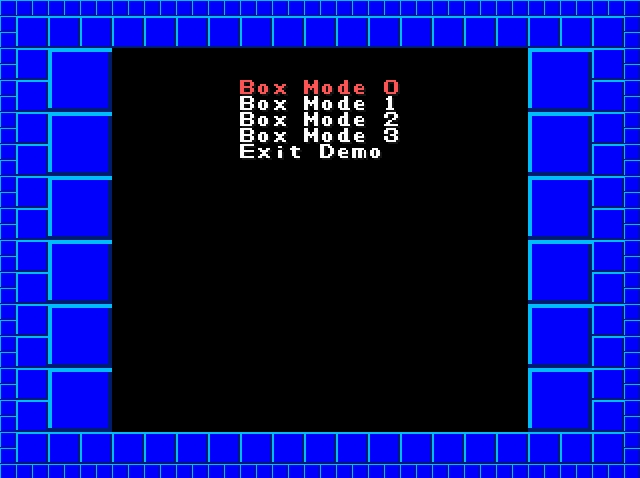

Douglas Crawshaw Jr updates his 8-bit Graphics Library, now featring documentation, text map generating from BLOAD/BSAVE and few smaller fixes.
Download the latest version here (320 KB).
Library webpage: http://dcjrprogramming.blogspot.com/2012/09/update-on-tileset-and-libraries.html

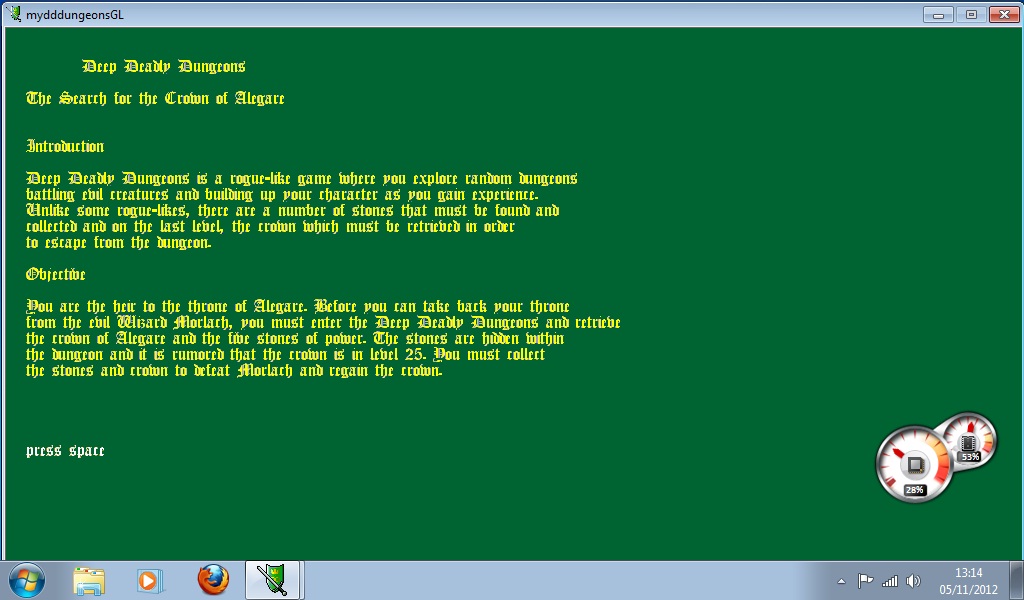

Chung released a small custom gothic font application.
Download the routine here (342 KB).
Forum thread: http://www.freebasic.net/forum/viewtopic.php?f=8&t=20589
Terry Ritchie updates his QB64 Sprite Library to version 0.2.
Download the library here (1292 KB).
More info in this forum thread: http://www.qb64.net/forum/index.php?topic=4141.0
Jobert14 released a full-motion-video library for QB64, featuring a player and a recorder. Awesome stuff!
Download the library (ver.1.0) here (10 KB).
More info in this forum thread: http://www.qb64.net/forum/index.php?topic=7282.15
Oz ported and prepared ENet game networking lib bindings for FreeBASIC. Great job.
Download: enet-master.zip (84 KB)
Forum thread: http://www.freebasic.net/forum/viewtopic.php?f=14&t=20550
On github: https://github.com/mrozbarry/enet
Oz continues to maintain and release updates on his Chipmunk headers for FreeBASIC. Chipmunk is a popular 2D physics engine.
Download ver.6.x: Chipmunk-Physics-master.zip (492 KB)
Forum thread: http://www.freebasic.net/forum/viewtopic.php?f=14&t=16476
On github: https://github.com/mrozbarry/Chipmunk-Physics/
Also mentioned in the awards section.

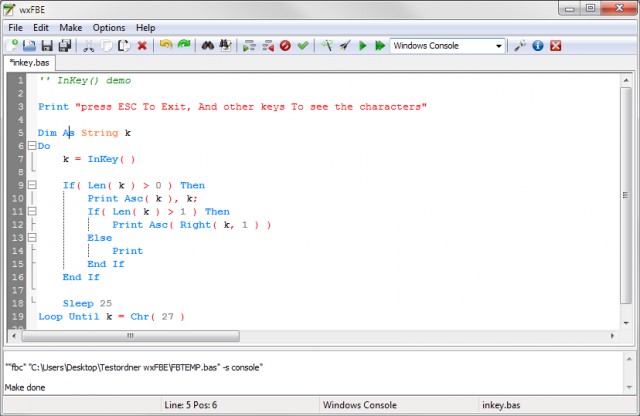

wxFBE is an FreeBASIC editor for both Windows and Linux by MOD. The editor is frequently updated and you can follow the SVN changelog at this webpage.

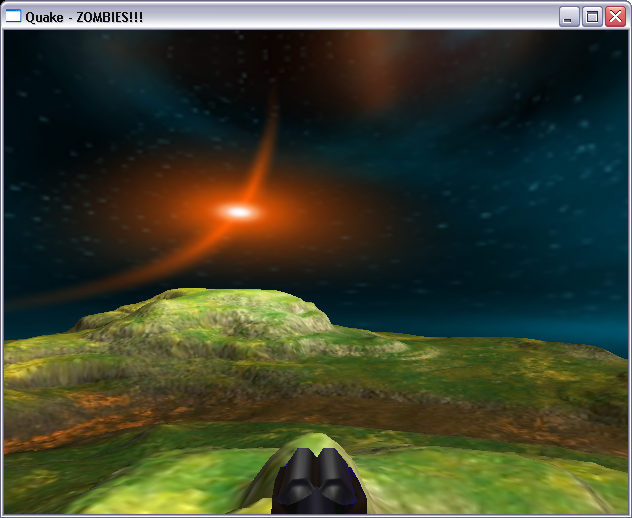

Galleon released another edition of his work-in-progress OpenGL-powered version of QB64.
Windows version available here.
Linux version available here.
After an insanely long hiatus (over 9 months) I finally updated FBGD with 18 new entries, including Convex Wars, Four, S.O.S. and many other. Rush to the site and start playing those games! Oh, not to forget. FBGD has a new spiffy background!
FBGD unleashes another game development competition. This year's theme is: SEASONS OF THE YEAR. The submission deadline is on 18th of February, so plenty of time to develop and execute something. Don't forget. It's a FreeBASIC competition and your entry must be open-source. Take note of the first place prize in the amount of 300 $, and second place prize in the amount of 100 $. Expect an increase as some people promised to donate. Visit the official competition thread, participate, follow, rejoice!
Official competition thread: http://games.freebasic.net/forum/index.php?topic=559.0
The good guys from the German-speaking part of our community started running bi-weekly competitions, with the first one featuring battle themed games. Check out the entries in this forum thread (in German).

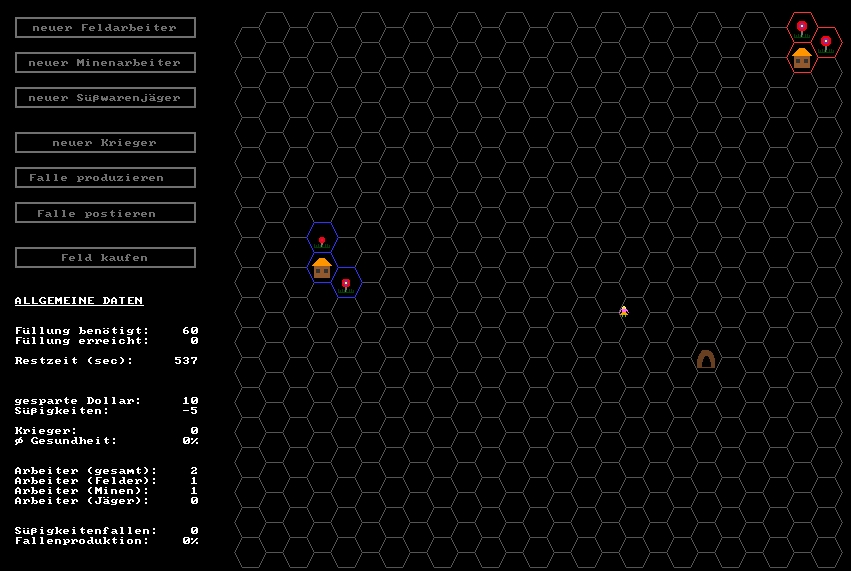

The competition ended as a tie between nemored's TrickOrTreat (11 KB), a curious Halloween-themed strategy game, and Domso's sunc (596 KB), an SF-themed tower defense type of game.
Webpage for all the entries: http://www.freebasic-portal.de/downloads/programmierwettbewerbe/
Second FreeBASIC-Code-Contest at forum.qbasic.at is already in progress lasting till 16.12. This time the theme is non-game related (or maybe games are allowed?), where the goal is to produce a Christmas-themed program, like an Advent Calendar, gifts-management program, etc.
Competition thread (in German): http://forum.qbasic.at/viewtopic.php?t=8002
BA Project is a very promising QB64 game in development by Lance E. McDonald's (aka Klangaroo) game studio, Man Fight Dragon. While the developer is rather secretive about the game setting and gameplay, he is very open regarding the engine features, including development videos at his blog.
BA Project looks like a very intriguing Syndicate/D-Generation style game, an isometric action/adventure game placed in some dystopian setting, featuring inovative and interesting features like vision and sound cones, as well as stuff like hacking computers and cool popup isometric menus.
Very excited about this project. Expected release: 2013.
More info in the official development thread: http://www.qb64.net/forum/index.php?topic=7329.0
Unjustly omitted in previous issues, I wish to awards these two individuals, as much for their past efforts, also equally for their valuable contributions in the past two months.
Oz (Alex Barry) developed sometime ago and continues to diligently maintain FB headers for Chipmunk, a popular 2D physics engine. He also provides examples, demos and documentation. Great work overall and a wonderful asset for the FB game developing community. Keep it up!
Official Chipmunk FreeBASIC webpage: https://github.com/mrozbarry/Chipmunk-Physics/
Official forum thread: http://www.freebasic.net/forum/viewtopic.php?f=14&t=16476
Local download of the latest version (6.x): Chipmunk-Physics-master.zip (492 KB)
In late October Oz also wrapped ENet for FreeBASIC, a game networking library (network communication layer on top of UDP). He also provided a simple server example with a client. Thank you, Oz!
Official webpage: https://github.com/mrozbarry/enet
Local download of the latest version : enet-master.zip (84 KB)

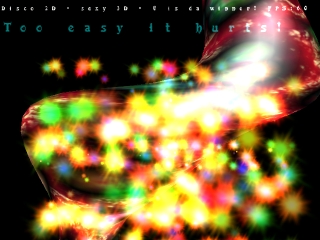

Relminator (Richard Eric M. Lope) continues to maintain his superb OpenGL 2D rendering engine for FreeBASIC, Easy GL2D. Besides maintaining this library he takes the time to write wonderful and lengthy game dev tutorials on various topics (last and this issue of BASIC Gaming), as well as to develop an exciting new game - Convex Wars FB. What is there more to say? A community member we can all wish for! Thank you for all your hard work so far, Richard.
Easy GL2D webpage: http://rel.phatcode.net/junk.php?id=115
Download the latest version (v.0.7) of Easy GL2D here: LibFBGL2D7.zip (1072 KB)
Download Convex Wars FB here: ConvexWarsFB.zip (956 KB)
Make your code reusable, you often read. There are many benefits to this. You can use it later for another project. You can share it. Others might use it. You can easily port it to other languages and systems.
This idea sounds great, but in practice I found it challenging. It's a skill that takes practice.
My old games consisted of a few files with code gone awry everywhere. The code was hard to maintain and easy to forget. Now, I am completely lost when I come back to it. This is because I organized the code in my head and not in the code itself. And when that organization is forgotten, I see the code for what it is, an unsightly mess.
On the contrary, reusable is organized code. It's easy to build upon and maintain. You can leave it for awhile and come back and pick up where you left off. So even if you don't plan to use your code in the future, make it reusable. It'll be easier to work with.
To make your code reusable is to separate different categories of code like you would organize clothes as you put them away or organize books in a library. Everything has a spot. You know where to look for something because it has a place; it is all organized according to a system. All the books aren't piled in one spot.
So what are the different categories of code? There's graphics code. For keyboard and game controllers, there's input code. There's game logic code -- for how the objects in your game behave. The list goes on. It's up to you on how you want to categorize, but there are a few fundamental categories -- just like fiction and non-fiction. These are data, presentation, and game logic: the data that composes the game, what you hear and see on the screen (how the data is presented), and the code that connects them and makes it all work.
From there you can break it up further. For example: output code can be graphics, sound, or whatever else the user will experience. Data can be image files, binary files, game scripts, and so on -- this is also the code that manages loading the data and handling resources. Game logic can be broken up into AI, player movement, physics, etc.
You want to separate these three basic categories. You don't want game data or game logic in your rendering code. Your rendering code should just be that: rendering code. Keep it only for drawing lines, sprites, whatever. Don't have it access any game data or logic. This part can be tricky, but do your best. You'll get better with practice.
A good place to start is to organize your code into files. Have a file convention for where things are stored. Maybe put your graphics code in a file called "graphics". It should hold all the graphics methods that you use for your game. If the file ever becomes big and cumbersome, split it into two files (based on another category, like fonts and other graphics), and throw them in a folder called "graphics". This is just an example. Use whatever makes sense for you.
On the other end of the spectrum you have the data end. A map manager is an example -- code that loads the levels and sets everything up. This can be more complicated, particularly the "set everything up" part. For example, I create a method named Map::load(). This method will load the map into memory, create the game objects (enemies, items, etc.), and set up defaults (like the player starting position), and reset values like the HP and score. But the values are somewhere else in the code. Should the map code directly access these values? Should Map::load() have access to the score variable? If the map code starts directly modifying globals like these then it becomes less reusable.
This already sounds like a headache. This is way too complicated. The map code should not be responsible for handling all of this. It should only load the map and allow me to access properties of the map, such as tile data. The setup code can be put either before or after the call to Map::load(). If you still need the method to access the outside values, use callback functions. I would like to go into more detail on callback functions, but that is for another article. In the meantime, read up on them.
As you make your code reusable, ask yourself if the code can run on its own or whether it depends on some other code. Some code needs to depend on other code. Critical parts of your game need to use graphics and sound code. But the graphics and sound code shouldn't need your game code to work. If you find otherwise, pull your game code out and put it where it belongs.
Here's a good test. Write a test file that only uses the graphics module (or map module, or whatever). Can you use it without providing excessive data? Can you load and draw a sprite without telling the graphics module about how much HP that sprite has? Can you load a map without first having to setup global score and object variables? Do you need to modify the module to make it work for your simple test? If you answer yes to any of these questions, then you may need to break some things out. The goal of your module should be something simple: to draw sprites, to load and manage map data, to load and play sounds, whatever. Make your module as simple as possible to use. Write method names that are intuitive, something you could guess if you forget. Your module should work with providing as little data as possible.
As you do this, I predict that your project will be more fun to work on. You'll be less stressed and frustrated. You'll be more motivated. When things are easy, it's easy to be motivated. When your code is well structured good things happen. Things make more sense. Bugs are easier to track down. You win the lottery. You know, awesome stuff.

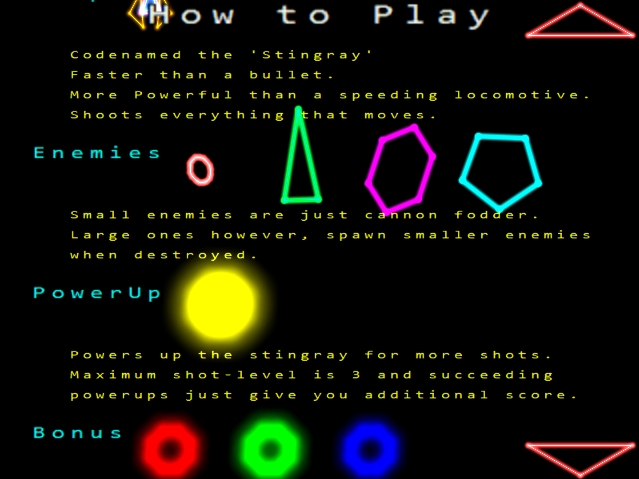

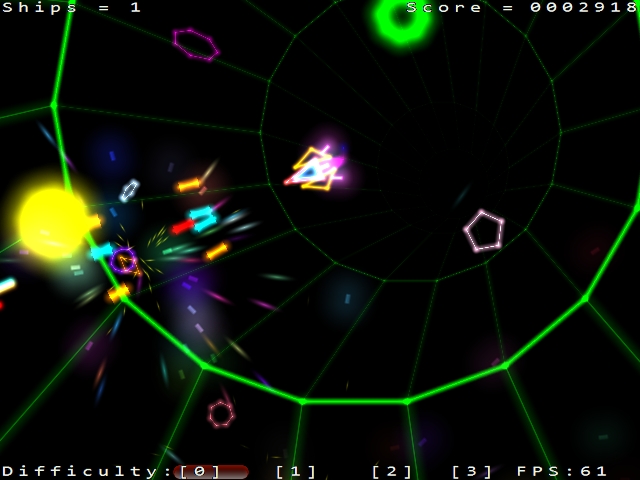

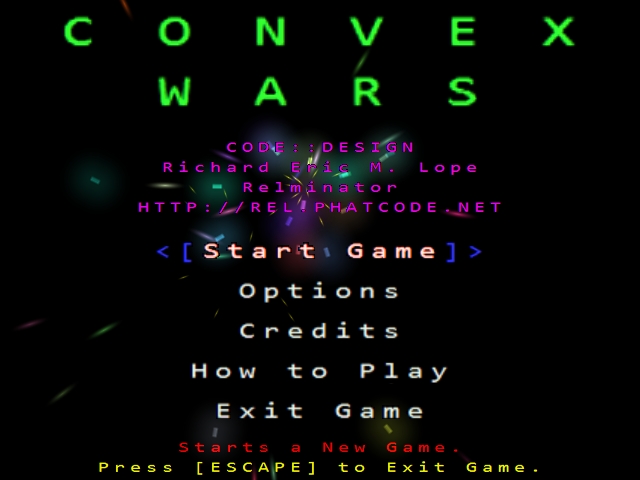

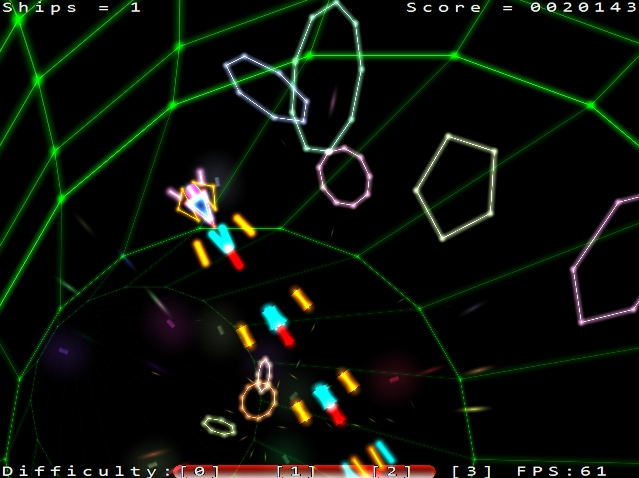

Convex Wars FB is a brand new FreeBASIC shooter by the community veteran, Richard Eric M. Lope, also known in the past as relsoft.
This game was developed to showcase Easy GL2D capabilities, being originally an engine programmed in C++, but even with those humble intentions it ends up being one heck-of-a-fun, top-down, Asteroids-style shooter.
Convex Wars FB is a top-notch presented game, with a fluid and vibrant main menu, boasting with gliding and bouncing menu selectors, cool background particle effects, detailed instructions and satisfactory amount of options. Once more, a school example of sleek design, from top to bottom.
The very gameplay? Well, it a straightforward Asteroids-style top down shooter. It introduces some specific gameplay solution, like not being able to cross the map edge and the backward thrust, which work quite well and add a specific flavour to the experience. The game pits you against never-ending swarms of variously shaped polygons you need to destroy, which consequentially, break into smaller ones. Occasionally in the playfield appear powerup balls and bonus tori (toruses?). Each powerup increases your fire power and projectile spread, all to a certain level. It is primarily a score-driven game, with the difficulty increasing with each destroyed polygon.
Convex Wars is a purely glow-line game and fully relies on wire-frame style graphics, spiced up with neat explosion effects and an effective wormhole-like background. Nothing to complain graphics-wise. All elements blend nicely with each other and create a cool looking light-explosion mayhem. The game also comes with intense music and solid and non-intrusive sound effects.
Now, where's the problem with Convex Wars then? Well, it's a game with too humble intentions. With only few more days of development time invested it could have turned into something much more. Above all, being a score-driven game, it painfully lacks some high score(s) to beat, or even better, online high scores table. Beside that, it's missing more depth, more powerups you can acquire, and some special surprise items and enemies popping up if you survive long enough.
In this form, it's an excellent example of sleek design and a great coffee-break game, but not enough to remain the talk of the community.
Let's hope it will be an inspiration for better and more ambitious Easy GL2D powered games.
Introduction
The first time I've heard the word "delta" was when I was a little tot watching a movie called "Delta Force" (Hell yeah! Chuck Norris FTW!). The second time was my physics class (which I didn't really care about since I was busy chasing girls at that time. :*) ). But I do remember that "delta" means "change in quantity". ie. DeltaV is Change in Velocity. The third time was when I started coding demos (Mono and Disco comes to mind ). Demos in general don't need controls like a game does and you'd want to pump as many frames per second as you can when coding them. But because demos tend to be calculation and GFX heavy, some computers won't run them at at full speed. So we do what you call [i]"frame-skipping"[/i] which involves delta-time.
Before you send me an email telling me that I'm writing an article for platform games, I should give you a preamble that this is still part of the platforming series. I'm writing about delta timing because this concept would be integral to our game engine later on.
So why the dt article? Because without some form frame control, any frame dependent game can run from like 10 FPS on a slow computer or 1000 FPS on a fast one and that would make your game unplayable unless you're on the right computer.
Gone are the days of DOS where we could limit the FPS (Frames Per Second) of our games at a nice 60 FPS by calling WAIT 3DAh, 8h. We now have computers that will never wait for vertical retrace no matter how you try to coerce the card to force vsych. My two laptops won't accept OpenGL code to force synching no matter what I do. I tried it from GLFW, FB to SDL without success. So I just limit my frames to 60 FPS by calling this code:
do : loop until (timer - time_start) >= (1/60.0) time_start = timer
It worked. However, there are two big issues with this technique.
In the essence, this system is just not elegant and a bad the way to control frames in modern game programming.
The Dt System
The most important concept in framerate independence is the [i]"dt system"[/i]. Dt means "delta-time" or the "change in time" (in seconds). Dt is the time elapsed between two frames. ie:
Complete code (means that you can cut and paste, compile then run):
dim as single dt dim as single LastTime = Timer dim as single CurrentTime = Timer dim as single SecondsElapsed = 0 dim as single StartTime = Timer do CurrentTime = Timer dt = CurrentTime - LastTime LastTime = CurrentTime SecondsElapsed += dt Locate 1,1 Print "CurrentTime = " & CurrentTime Print "dt = " & dt Print "Seconds Elapsed via dt = " & SecondsElapsed Print "Seconds Elapsed via Timer = " & CurrentTime - StartTime loop until Inkey <> ""
The sharp minded among you would notice that dt is added to SecondsElapsed and that SecondsElapsed is equal to the total time (in seconds) our nifty little demo ran. This is the basis of delta-timing. You see, the faster our loop runs the smaller the dt (speed is inversely proportional to dt). So no matter how fast our loop executes dt would compensate by becoming smaller and smaller. The number of seconds elapsed in a fast or a slow computer would always be the same. You can say that the above code is "framerate independent".
So how do we use dt to make our games run at the same speed on different computers then? First, I want to give you a game situation.
Say your game runs at a sloooooooow 10 FPS (simple example).
A 10 FPS game runs at 1/10th of a second per frame. Therefore, your game loop completes 10 cycles every 1 second. Since Dt is the change in time the loop completes, our dt value would be 1/10 or 0.1 second. At 1 second, our total dt values add up to 0.1 * 10 which is equal to 1. Some numbers...
FPS Loop TIME DT 10 FPS -> 1/10s -> 0.1 ( 1/10.0 ) -> 0.1 * 10 = 1 50 FPS -> 1/50s -> 0.02 ( 1/50.0 ) -> 0.02 * 50 = 1 60 FPS -> 1/60s -> 0.0167 ( 1/60.0 ) -> 0.0167 * 60 = 1 100 FPS -> 1/60s -> 0.01 ( 1/100.0) -> 0.01 * 100 = 1
See the relationship yet? Tip: "Sum of dt per second is equal to 1" ;*)
Using Dt to Move Objects
With frame-limited games we were used to fixed units. So, an object with a speed of 1 will move 1 pixel per frame and with 60 FPS an object with a speed of 1 would move 60 units per second.
With delta-timing we base our units in pixels per second. That is, if we want to move an object 60 units a second no matter how much FPS we get, we will give it a speed of 60.
At Speed = 60 FPS dt FPS * dt * Speed Distance moved in Pixels 10 -> 0.1 -> 10 * 0.1 * 60 = 60 50 -> 0.02 -> 50 * 0.02 * 60 = 60 60 -> 0.0167 -> 60 * 0.0167 * 60 = 60 100 -> 0.01 -> 100 * 0.01 * 60 = 60
I believe the above table says it all. "Same speed regardless of framerate".
Try this little demo: Deltatime.zip
Did you try the on-screen instructions? I bet you did and noticed that when we drag the window, the simulation skips by a large amount relative to time. This is one of the biggest problems with simple delta-time, the larger the timestep (dt), which means your engine runs slower than expected, the less accurate the simulation. By dragging the window in our simulation, you force the timestep to "accumulate" in some big value and you will see the result as "jumping" of positions and collision breakdown. This is actually how "frame-skipping" in emulators work.
So how do we "fix" it? Easy, just limit your dt to a maximum value equal to your fixed timestep (1/60 for 60 FPS).
CurrentTime = Timer dt = CurrentTime - LastTime LastTime = CurrentTime if( dt > FIXED_TIME_STEP ) then dt = FIXED_TIME_STEP '' This is the fix
So if your 60 FPS game for some reason (like a sloooow computer) runs at 30 FPS, your dt would be capped at 1/60. The effect of this is slowdown in your game when the FPS drops below 60, but I'd rather have slowdowns instead of simulation breakdown.
Now that we know how delta-timing works, it's time for a little example:
Linear movement: DeltatimeDtCapped.zip
constructor Ball() x = rnd * SCREEN_WIDTH y = rnd * SCREEN_HEIGHT dim as single a = (rnd * 360) * PI / 180 Speed = 80 + rnd * 180 Dx = cos(a) * Speed Dy = sin(a) * Speed End Constructor sub Ball.Update( byval dt as single ) X += Dx * dt '' scale our movement by how much time Y += Dy * dt '' has elapsed since last update '' bounce around if we hit a wall if( X < 0 ) then Dx = -Dx if( X > SCREEN_WIDTH ) then Dx = -Dx if( Y < 0 ) then Dy = -Dy if( Y > SCREEN_HEIGHT ) then Dy = -Dy End Sub
As you can see, we just pass our dt value to our update function and do the dt calculations as usual.
X += Dx * dt '' scale our movement by how much time Y += Dy * dt '' has elapsed since last update
Accelerated movement: DeltatimeAcceleration.zip
constructor Ball() x = rnd * SCREEN_WIDTH y = rnd * SCREEN_HEIGHT dim as single a = (rnd * 360) * PI / 180 Speed = 0 DirX = cos(a) '' save direction DirY = sin(a) End Constructor sub Ball.Update( byval dt as single ) Speed += ACCELERATION * dt '' accelerate by dt amount every frame if Speed > 180 then Speed = 180 '' limit speed or we go waaay fast Dx = DirX * Speed '' Calculate direction Dy = DirY * Speed '' No need to do dt here X += Dx * dt '' scale our movement by how much time Y += Dy * dt '' has elapsed since last update '' bounce around if we hit a wall if( X < 0 ) then Dirx = -Dirx if( X > SCREEN_WIDTH ) then Dirx = -Dirx if( Y < 0 ) then Diry = -Diry if( Y > SCREEN_HEIGHT ) then Diry = -Diry End Sub
With acceleration, our dt calculation is a little but complicated. Instead of multiplying speed (Dx and Dy) by dt, we multiply Acceleration by dt and add it to Speed. It may be a little hard to visualize, but try to think about it and it would eventually make sense. One rule I always employ is: "if you have to add or subtract, chances are, you need to use dt".
Rotations can be done the same way as the linear or accelerated movement.
Angle += RotationSpeed * dt
Okay, so we have a system that would run at a constant speed on any framerate and we have a great way to do our game or physics simulation right? Wrong! I kinda lied about dt being the fix-all- system regarding framerate independence. It may work just fine with simple games, but some calculation-heavy games tend to breakdown on large dt values and sometimes even on small dt values. I've experienced on this when writing a delta-time based platform engine that worked quite well on FPS below 400. But when I tried it on a very fast machine at my wife's workplace, the collision didn't work quite well (very jittery). Fortunately, the guy who made TinyPTC came to the rescue.
Enter the Gaffer (Fix your darn timestep!)
This system is based on this article made by Gaffer (so I won't explain all the details of the technique): http://gafferongames.com/game-physics/fix-your-timestep/
The gist of the article is about "decoupling" your game physics from your display by using a timestep "accumulator". This means that your game logic and physics run at a different speed than your display. So your display may run at an absurdly fast ~1000 FPS, but your physics logic would always run on a set timestep. By making your physics run at a fixed timestep, say 60 FPS, you will have more control over your physics and can predict the outcome of your logic. Your display rate could vary as low or as high as it want, but the logic would still run at a constant speed. Now this is what I call true framerate independence!
OT: Whoaa! I just felt an Earthquake! Iloilo, Philippines, (11/14/12), 1:23 PM while watching Cinema Klasika on GMAnews TV.
Deltatiming using Accumulator: DeltatimeAccumulator.zip
The accumulator system is fine, but why stop there?
Deltatiming using Accumulator with Interpolaton: DeltatimeAccumulatorInterpolation.zip
You may have noticed the fact that I did not limit my dt when its value is greater than FIXED_TIME_STEP. This is because the system Gaffer thought of is so good it could undersample or oversample depending on the speed of the simulation. Of course it would still jitter on really slow machines so you may want to implement a dt limiter if you want. It really depends what you want as a bitter pill, "jumping" (no dt limit) or "slowdowns" (dt is limited to FIXED_TIME_STEP) when FPS gets below FIXED_TIME_STEP. I personally use the dt limiter since my games tend to be arcade games and I'd rather have slowdowns than position jumps. Getting your player object get hit by a bullet that miraculously teleports from one point to another in a single frame is a lot more frustrating than getting it hit by a slowing down bullet.
However, if you still see jitters when using the interpolated version of the dt system on a fast enough computer, chances are that's a rounding off error. You can easily fix that by using doubles instead of singles (floats) in your delta-time calculations.
Now for something you would never expect in a delta-time article...
The Union (Combining Deltatiming with Frame Limited Physics)
Yes, you read it right. I've developed a way to use timestepping in Frame limited games. This system allows you to code in a frame-based system while using delta timing. This is a good system to port games that run on a frame-limited basis (Nintendo DS games are still frame-limited). How do we do it then? First let's look at how the Gaffer system works (without the interpolation part):
FIXED_TIME_STEP = 1/60.0 CurrentTime = Timer dt = CurrentTime - LastTime LastTime = CurrentTime Accumulator += dt '' Add accumulator '' As long as accumulator gets above or equal 1/60 we update by dt = 1/60 while( Accumulator >= FIXED_TIME_STEP ) for i as integer = 0 to ubound(balls) Balls(i).Update( FIXED_TIME_STEP ) '' Update ball at fixed timesetep (1/60) next Accumulator -= FIXED_TIME_STEP '' decrease accumulator Wend
Do you see the fact that Balls(i).Update( FIXED_TIME_STEP ) updates at a constant timestep value (FIXED_TIME_STEP)? Do you also see that at 60 FPS, a ball having a velocity of 1 would move 1 unit in 1 second if dt = FIXED_TIME_STEP?
ie: 60 * 1 * 1/60 = 1.
Do you also see that at 60 FPS, a ball having a velocity of 1 would move 60 units in 1 second if dt = 1?
ie: 60 * 1 * 1 = 60
I bet you already see the relationship and could make the code to marry frame limited games with delta timing. However in case you still don't...
Assume we run at 60 FPS (like if we forced vsynch at 60 Hz) so at 1 second with a speed of 1 we move 60 units:
Complete code:
cls const as single FIXED_TIME_STEP = 1/60.0 const as single DeltaTimeSpeed = 60.0 '' 1 second speed for 1 unit per frame const as single FrameLimitedSpeed = 1.0 dim as integer Frame = 0 dim as single XFrameLimited = 0 dim as single XFixedTimeStep = 0 Do Frame += 1 XFixedTimeStep += DeltaTimeSpeed * FIXED_TIME_STEP XFrameLimited += FrameLimitedSpeed locate 1,1 print "XFixedTimeStep = " & XFixedTimeStep print "XFrameLimited = " & XFrameLimited sleep 10,1 Loop until Frame >= 200 sleep
There it is. I hope that the above code explains it well.
And Since...
XFixedTimeStep += DeltaTimeSpeed * FIXED_TIME_STEP XFrameLimited += FrameLimitedSpeed
Are virtually the same, we could substitute one for the other. Here's our ball demo With the new "united" system:
This works very well and you get your physics free of dt. In fact, you can also do "interpolation" with this system if you really want it.
When to use this system is up to you. Most of my games are SHMUPS (Shoot Em Up/Space Shooter) where "replays" are almost always a must. Since the way I save replays are framebased, you could only imagine how large the replay file would eat memory at 500 FPS instead of 60.
Every 10 Minute of play at 4 bytes a frame:
60 FPS * 60 Sec/Min * 10 MinutesPlayed * 4 Bytes = 144000 bytes 500 FPS * 60 Sec/Min * 10 MinutesPlayed * 4 Bytes = 1200000 bytes
So you can just imagine how big our replay file when you play for for 30 minutes.
Here are some of my games with a replay system:
Frantic Journey RX: http://rel.phatcode.net/index.php?action=contents&item=FJ-RX
Space Impakto DS (This is in C++, but the replay system only use 1 byte per frame): http://rel.phatcode.net/index.php?action=contents&item=Space-Impakto-DS
Then again, there's nothing stopping you from doing your game physics with the interpolated system while doing your replays frame-based. In fact, you can use any of the dt systems along with each other.
Imagine this: Your player object use an interpolated system, your bullets use the simple dt system and your replay system use the framebased system in one single engine. But that would be kind of mental.
Here's an example of using all the different systems in one gameploop. As you can see they all update with the same timestep, so you can use any system you like or of all of them at once.
Cool Things You Can Do With Timestepping
There are some nice things you can do with delta time. With the way the dt system works, it's very easy to implement these game and physics related things:
1. Pause
Setting your dt to 0 pauses everything.
CurrentTime = Timer dt = CurrentTime - LastTime LastTime = CurrentTime dt = 0
2. Slowdowns
Dividing your dt by a value slows down everything (aka Matrix Bullet-Time). The code below makes the objects move at 1/2 speed.
CurrentTime = Timer dt = CurrentTime - LastTime LastTime = CurrentTime dt /= 2
3. Speedup
As with slowing down, scaling your dt by a value speeds up everything (Vampire movement in Twilight). The code below makes the objects move at 2x speed.
CurrentTime = Timer dt = CurrentTime - LastTime LastTime = CurrentTime dt *= 2
Sample here: DeltaTimeLaser.zip
Note that I'm using Easy GL2D's special function to return the dt which makes things much more readable. I'll also use Framebased delta timing for our Platforming tutorial from now on so that it would be easy to understand.
A good exercise would be to code a demo with different objects running on different timesteps simultaneously. I'll let you do that yourself. :*)
Hope you enjoyed this issue. Didn't have an inspiration for a propaganda poster this time, sorry. Just keep up the good work, guys. I'm with you. Hoping to participate more myself too. Happy holidays and just have fun living...if circumstances allow.
Peace!
~ Lachie (lachie13@yahoo.com)
